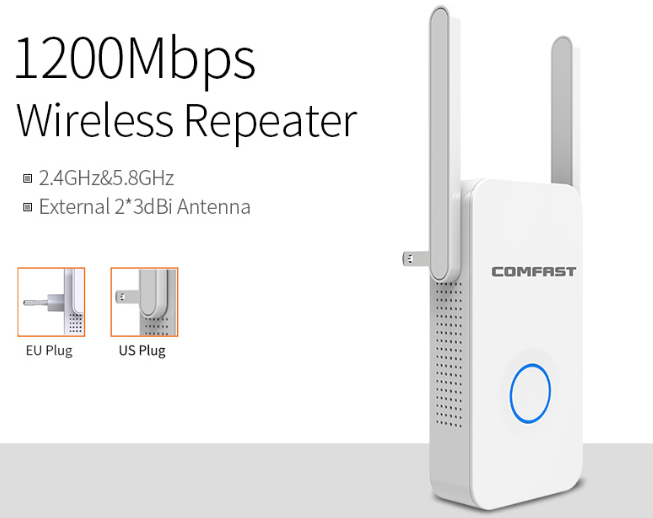

1200Mbps Extender Antenna Router Booster WiFi Extender Repeater

Product Specification

△Antenna:External 2*3dBi smart dual band omnidirectional antennas

△Button: 1Xwps/RST button (WPS short press,Reset long press)

△FR Parameter: Transmitting power:128mW

             Receiving Sensitivity: -96dBm

             Working Frequency: 2.412-2.4835GHz ; 5.180-5.825GHz

△Wireless standard:IEEE802.11ac/a/b/g/n

△Physical Ports:1*10/100Mbps LAN/WAN RJ45 Ethernet port

△Transmission Rate: 11b: 1/2/5.5/11Mbps

                 11g: 6/9/12/18/24/36/48/54Mbps

                 11n: 300Mbps

                 11ac:867Mbps

△Encryption:WPA-PSK/WPA2-PSK

△WPA/WPA2

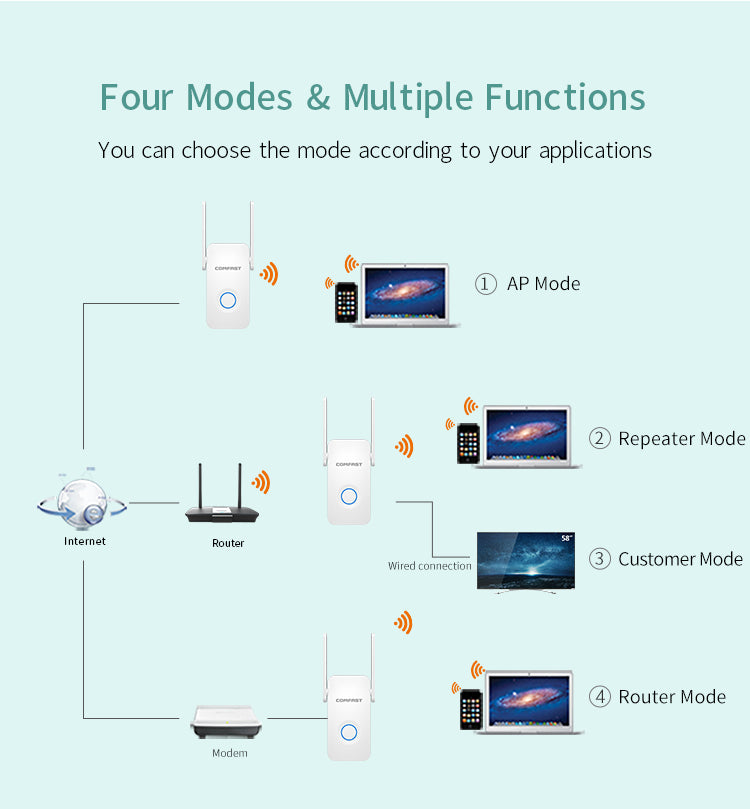

△Working Mode: AP/Repeater/Router mode

△Product size:185*60*22mm

△Plug：EU/US Plug

Features:

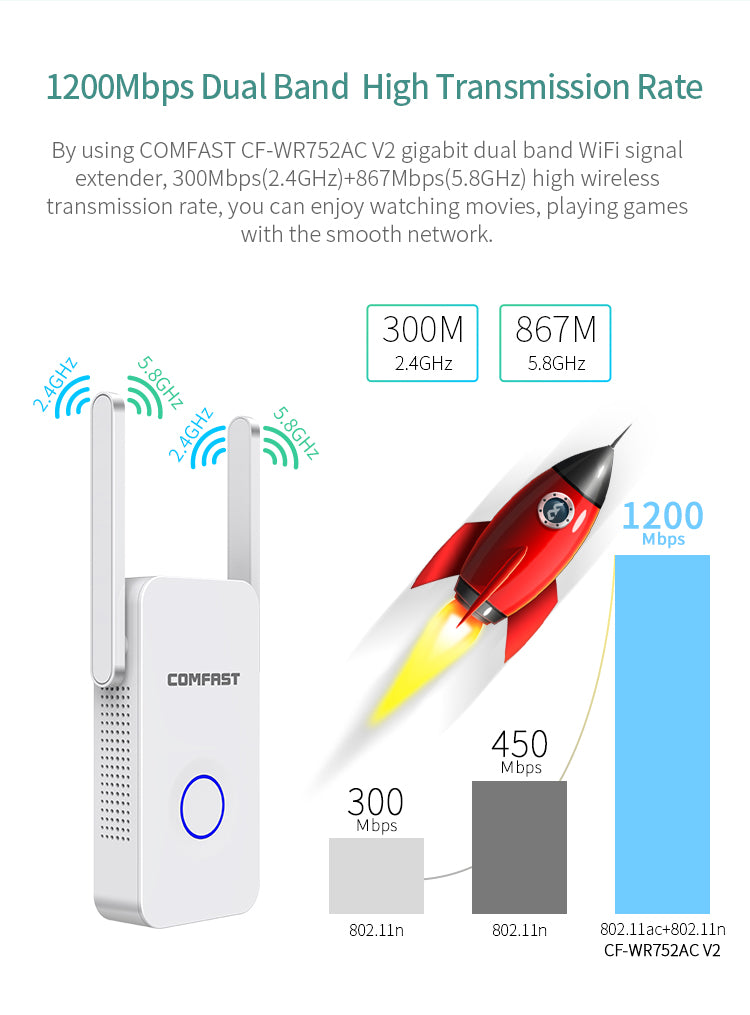

×Using 11AC wireless technology, 1200Mbps wireless transmission rate

×4/5.8GHz dual-band anti-interference

×External 2*3dBi smart omnidirectional antenna, wide coverage

×Good compatibility, compatible with all mainstream routers and wireless network cards on the market

×1 10/100Mbps Ethernet port, can be used for related expansion

×Support relay, AP, routing mode

×Smart LED light designed to find the best location for optimal ×performance.

. green light -Strong signal

. red light -Weak signal

. blue light-AP and routing mode

Packing List ：

1* Wireless Repeater

1* Cable

1* Box

1* user manual

Note:

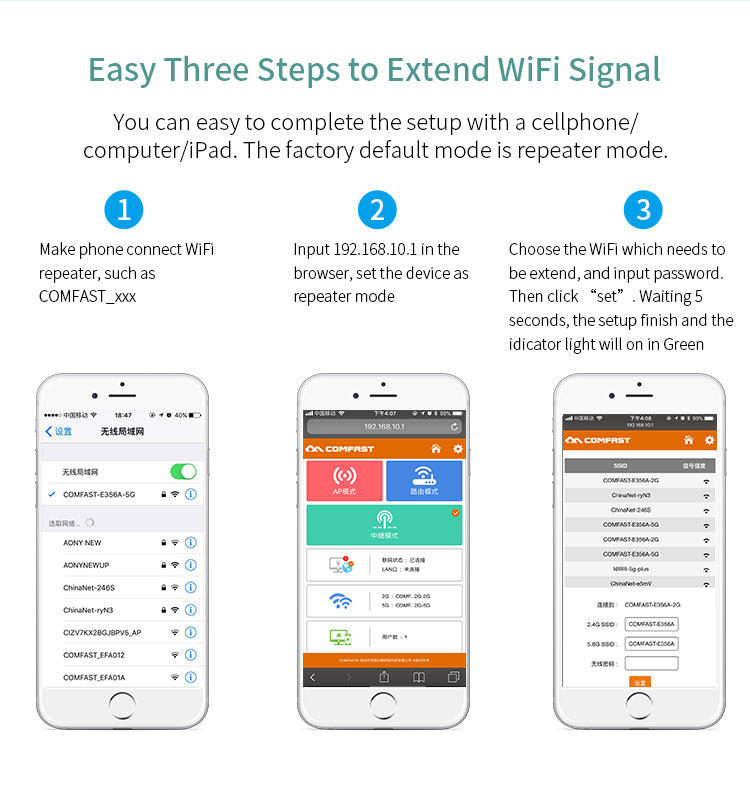

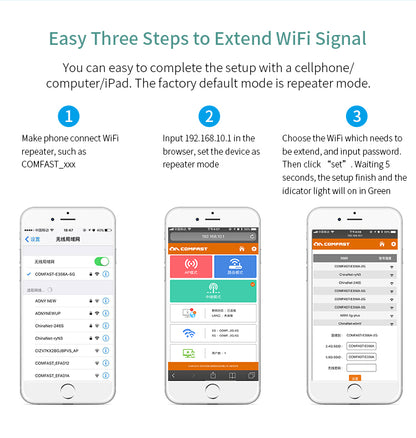

1) The passwords of your repeater are as same as your router’s.( login in APP password is"admin")
2) More than 70% signal is recommended for the most reliable connection.
3) Poor signal connection may cause slow speeds or dropped connection.
4) If do not see desired wireless network, you can move the range extender closer to the router and scan again as it may be out of range.
